T/GT500's Electrics

Robert Bond's Home Brew CDI for GT500 A and B Models

Robert, with some assistance from Phil C. in the UK came up with this home brew replacement for the Suzuki PEI unit - cost in the USA for the components runs a bit less than $30.

Schematic and Parts List

Note: the 'G', 'A' and 'K' are the accepted terms for gate, anode and cathode connections on the SCR.

The above circuit replaces the area in the box labelled 'CDI unit' in the diagram below which is taken from the Suzuki shop manual which can be found here.

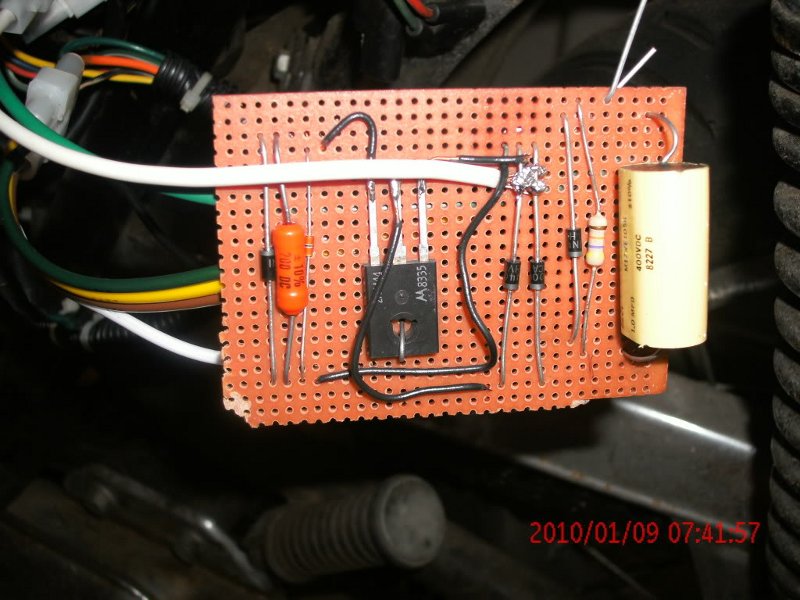

Breadboard Demo Circuit for Testing

Per Norstedt has a good GT500 ignition trouble shooting guide on his site located here which is worth bookmarking.

Back to Top

Component Parts T and GT

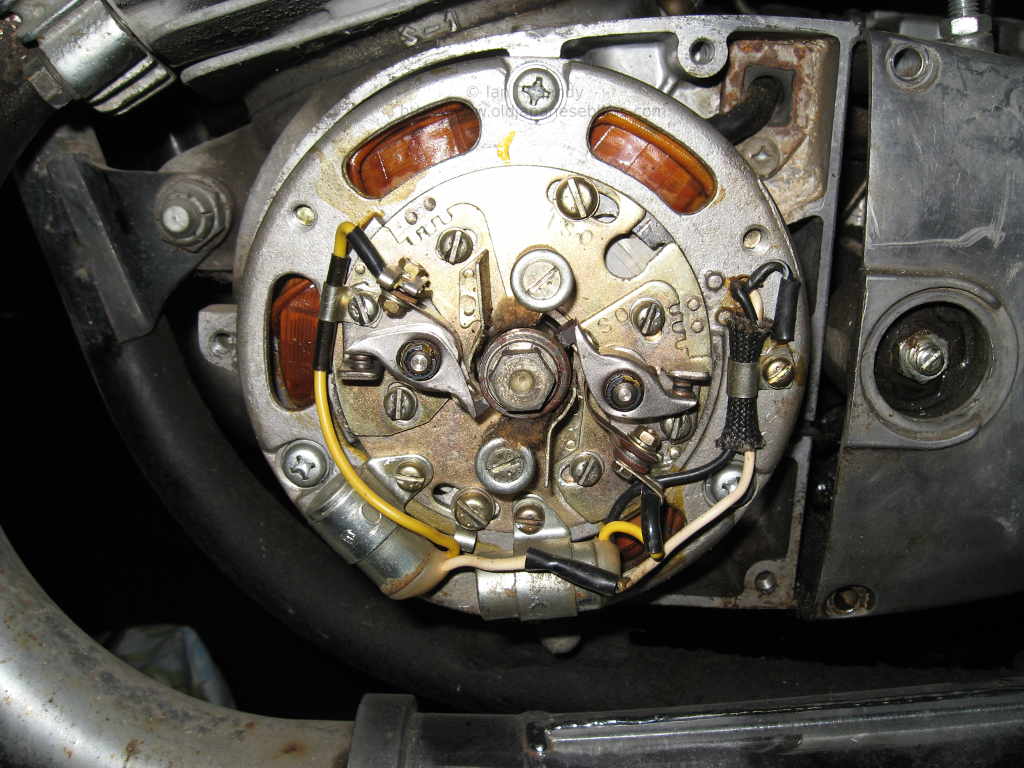

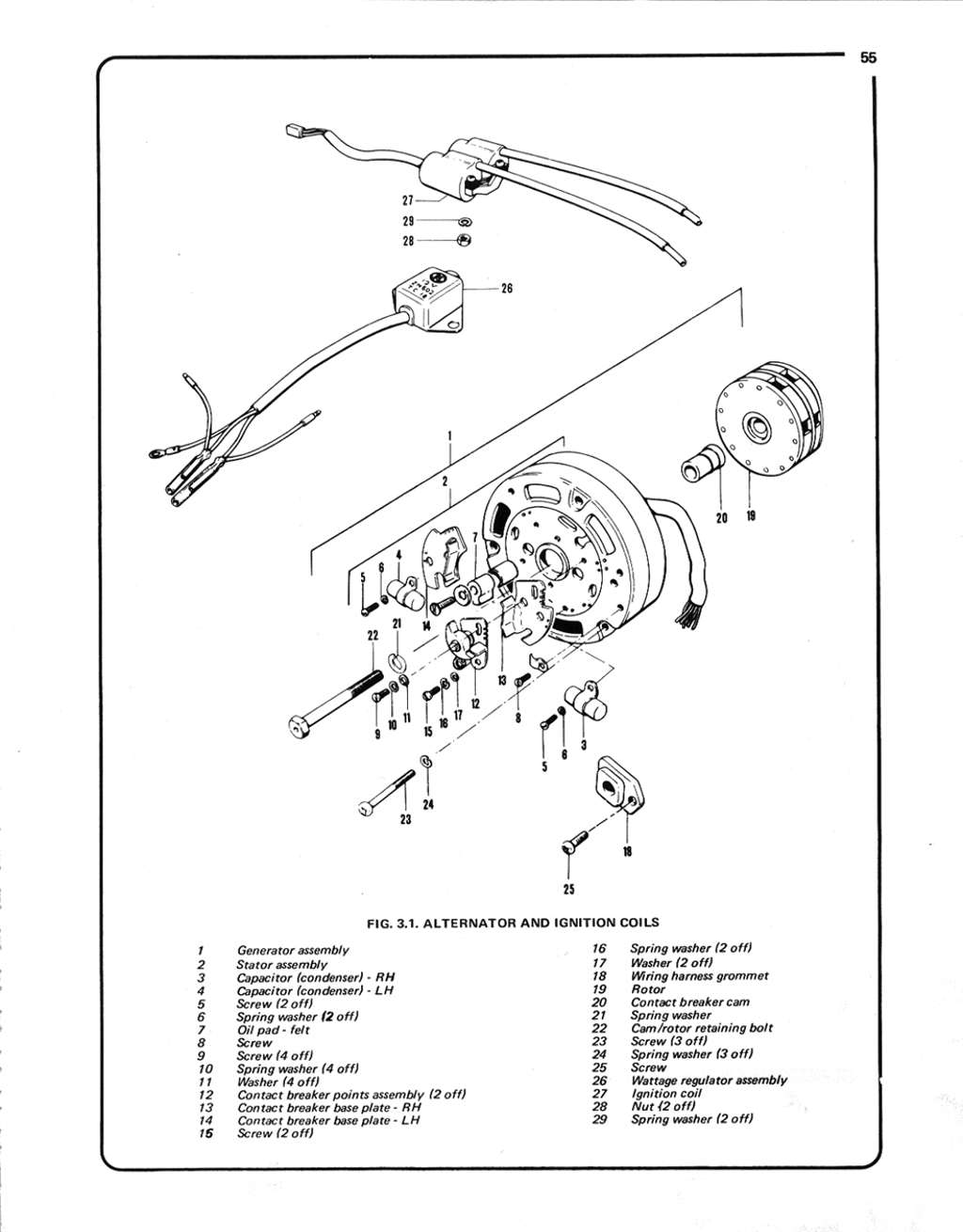

  • The MK I through T500M use points ignition.

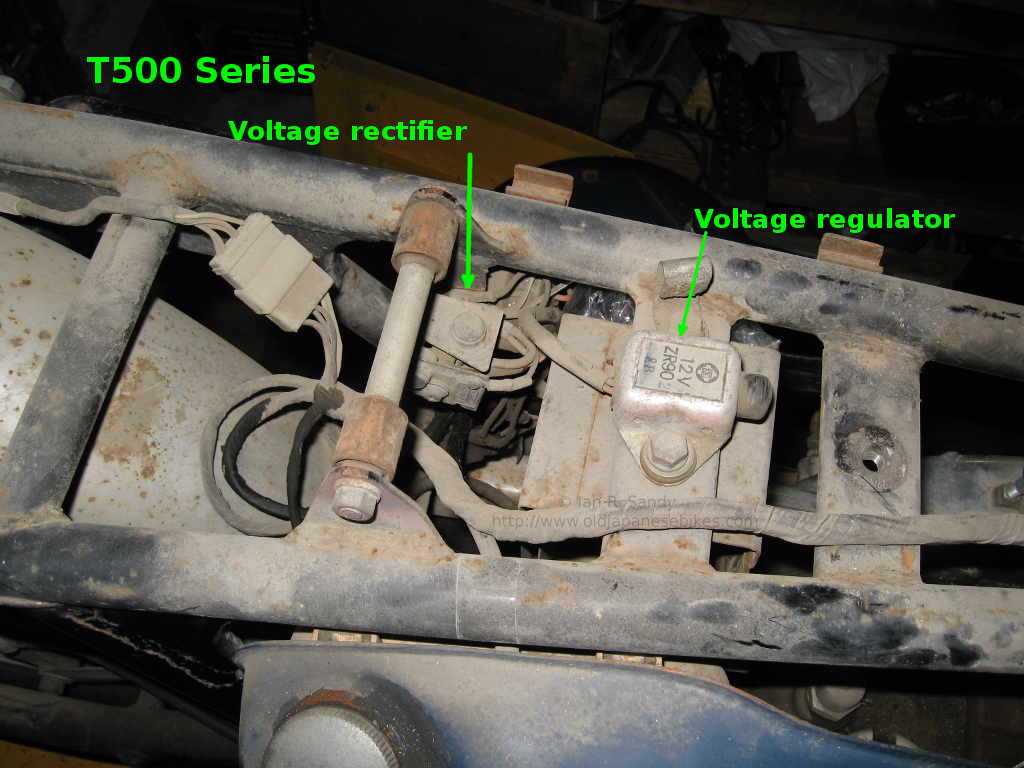

  • The second photo shows the location of the T500 series regulator and rectifier.

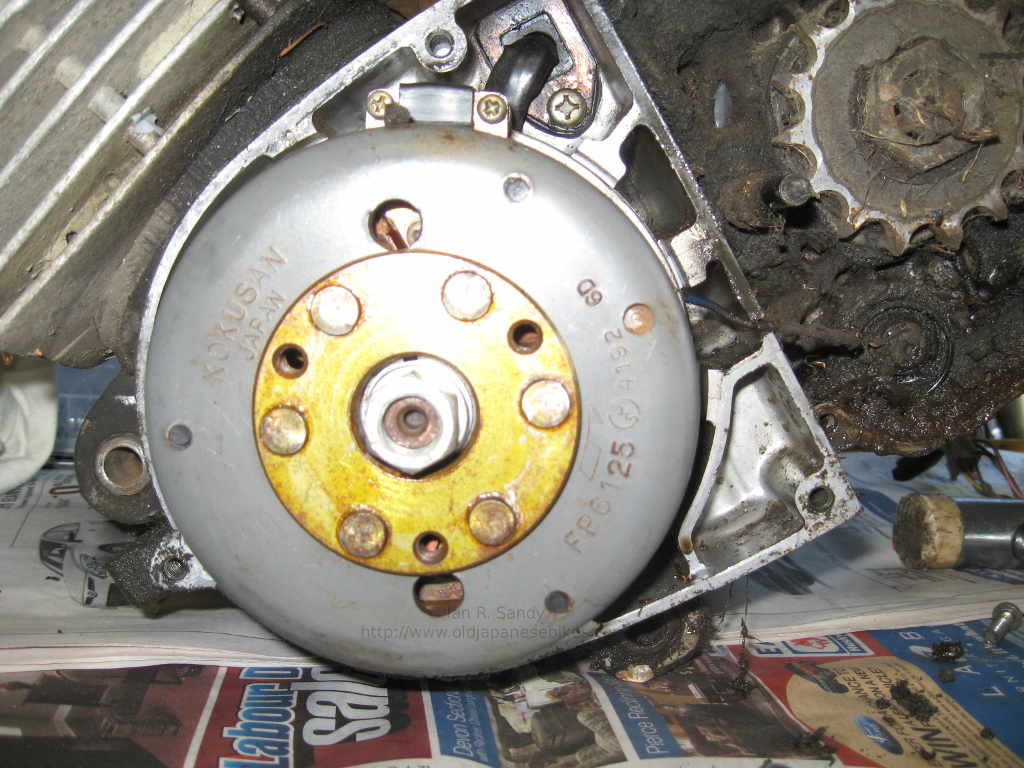

  • The GT500A/B use pointless ignition - nothing to set.

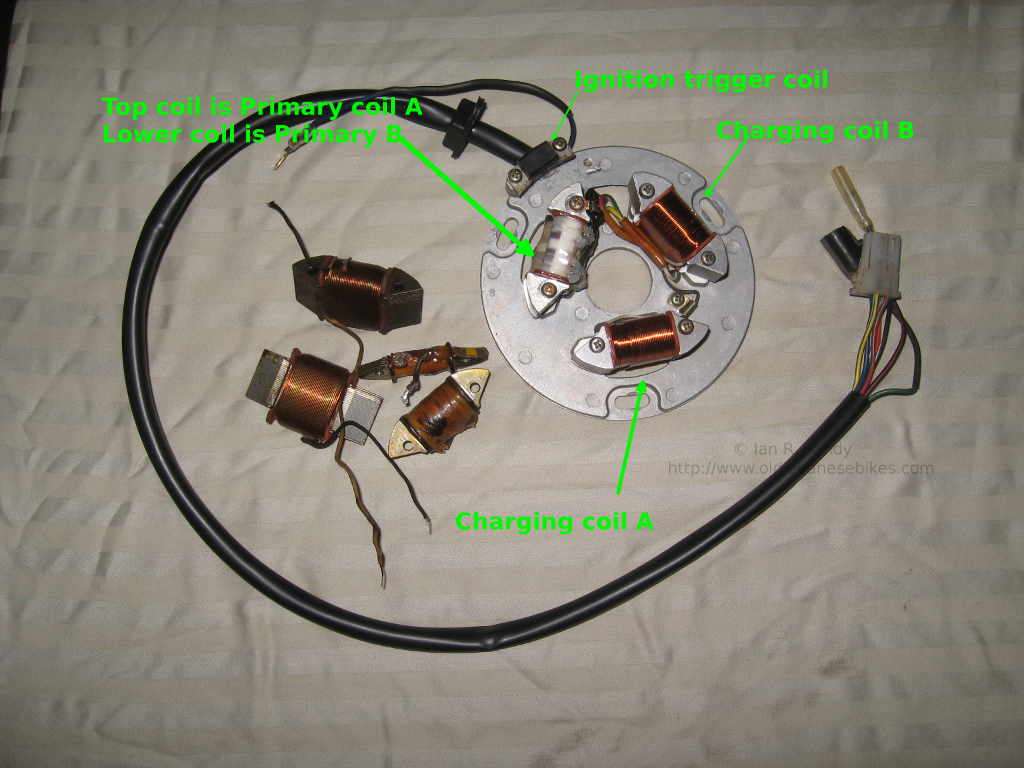

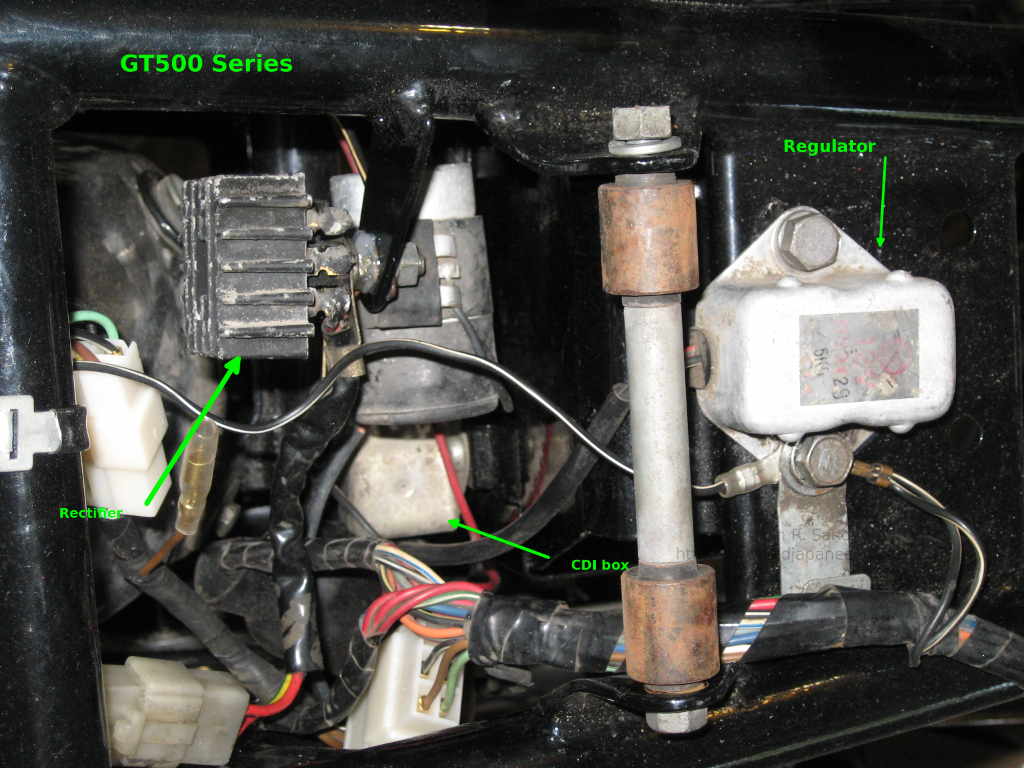

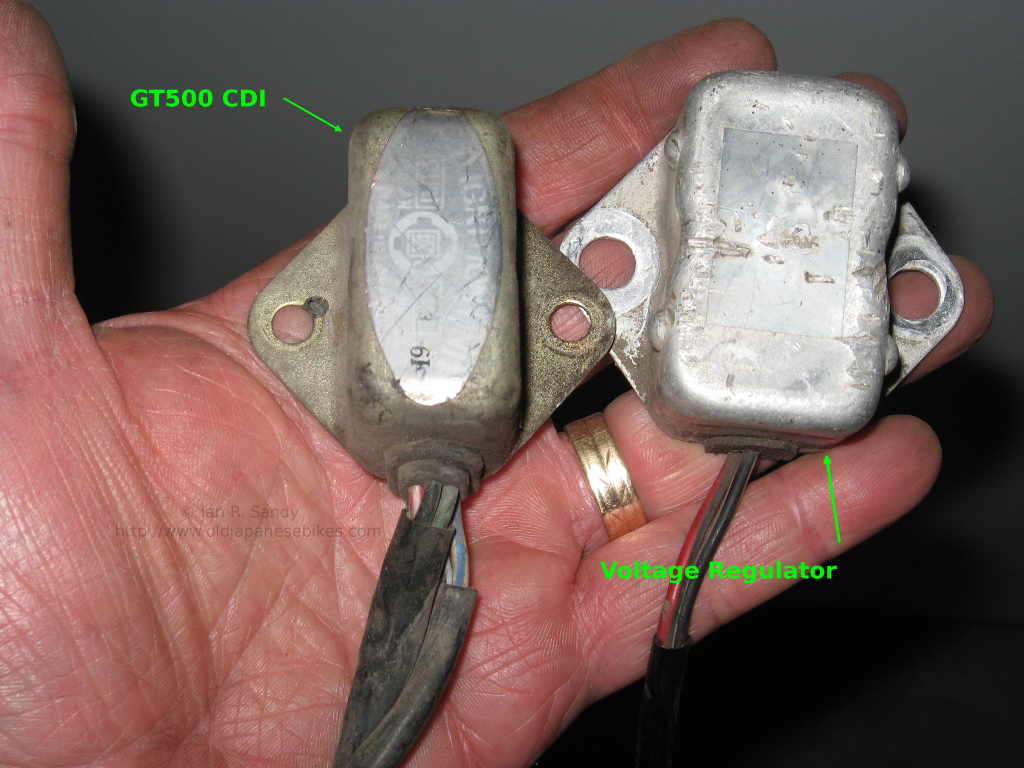

  • The second photo shows the coils under the magneto housing, and if you click through you will see a photo of the GT500 series regulator and rectifier.
